Metering
Heavy Duty Meter Sockets
Basic Breakdown
- 100-320 Amps self-contained
- Also available as CT rated 80 Amps
- 600 VAC
- Single phase and three phase
- NEMA 3R enclosure
- UL listed
- Constructed from G90 galvanized steel, aluminum or stainless steel*
The lever bypass is not a disconnect switch. Do not open or close bypass under load unless meter is in place. Learn more about the difference between a bypass and a disconnect.
Why Heavy Duty
Whether you’re concerned about safety or product quality, Milbank heavy duty lever bypass products have you covered. Utilities are requiring safer products to protect workers in the field. The added safety components boost product performance.
Features

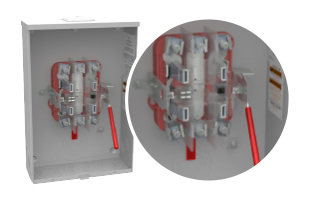

- Lever in the up position places meter in bypass mode
- Spring-loaded jaw clamping
- Units up to 200 Amps have molded lay-in lugs
- 320 Amps units have studded block for mechanical lugs
Benefits
- Protects from coming into contact with live components
- Increasingly required by utilities
- Tighter jaw clamping capability; better electrical connectivity, which produces less heat
- Allows for faster wire installation
- Flexible, can use with single or parallel wires
Ideal for going to multiple load centers

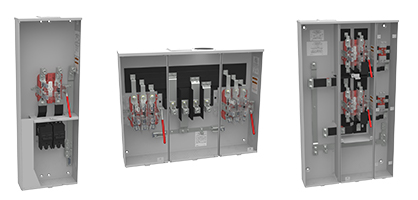

Popular Products
Below are some of Milbank's most popular heavy duty lever bypass meter sockets. This does not represent all our heavy duty line. For more available heavy duty product, reach out to your local rep!
- U4801-XL-5T9
- Ringless
- 600 VAC
- 200 Amps
- See more U4801 products
- U2594-X
- Ringless side bussed
- 600 VAC
- 320 Amps
- See more U2594 products
- U1797-O-K3L-K2L
- Ringless side bussed
- 600 VAC
- 320 Amps
- See more U1797 products
- U2272-RL-5T9-BL
- Ringless with barrel lock
- 600 VAC
- 125 Amps
- U3042-XL-QG-BLG-LIS
- Ringless with barrel lock provision
- 600 VAC
- 200 Amps
- U9551-RXL-QG-AMS
- Ringless
- 600 VAC
- 200 Amps
- Ameren area
- See more U9551 products
- U2448-X
- Ringless side bussed
- 600 VAC
- 320 Amps
- See more U2448 products
- U9701-RXL
- Ringless
- 600 VAC
- 200 Amps
- See more U9701 products
Download Resource
See all the heavy duty lever bypass information in one place with our downloadable heavy duty trifold! Simply click on the button below.
Applications
Common applications for heavy duty lever bypass products include commercial buildings such as standalone fast food restaurants and salons. More utilities are requiring for residential applications.
