Metering
U6221 Meter Main Pedestals

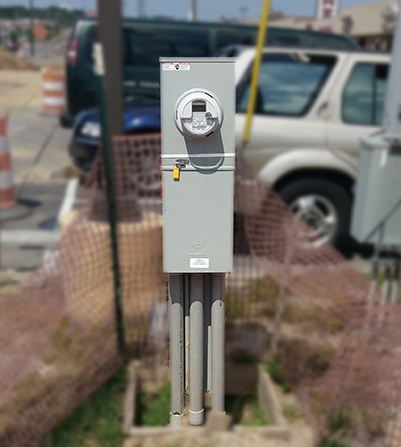

The U6221 is a meter main pedestal that offers up to ten branch circuits with a 100 Amps main and up to eight branch circuits with a 200 Amps main as well as up to three receptacles. It is ideal for small freestanding businesses needing to distribute power for lighting or signs and is also a great fit for mobile home or RV parks or traffic lights and signals. In one application for a state DOT, the U6221 was used to help power traffic control.
This pedestal includes a NEMA 3R rated enclosure and offers a sealable and lockable meter main for safe, secure power distribution. The U6221 pedestal is available with a direct bury post. For a pad-mount applications, you can order the U6435, which offers the same features.
Get more information on Milbank meter main pedestals.
Features include:
- Durable
- Receptacles
- Safe and secure
- Versatile
- Short circuit withstand rating of 22K AIC
- Load center with feed through lugs
- Loop feed lug landings
- Alternate power interlock capability
- UL listed
- Made in the USA
Benefits include:
- NEMA 3R rated, aluminum shell
- Up to three receptacles field or factory installed
- One-piece post, sealable and lockable
- Direct bury or pad-mount available
- Up to 10-circuit load center with GFCI receptacle
